# F.O.R.G.E. (Steel)
> **F**usion **O**f **R**eal-time **G**enerative **E**ffects
*Steel version (PC executable)*
Discover an engine where user-defined fragment shaders collide to produce stunning visuals.
See [Demo #1 - 1H](https://youtu.be/HgErrasSs-w) and [Demo #2 - Monitor View](https://youtu.be/RW9Pno7YAzg) on YouTube
b
## Table of Contents
- [What is FORGE ?](#what-is-forge-)
- [Install](#install)
- [Prerequisites](#prerequisites)
- [From release](#from-release)
- [From repository (PKGBUILD)](#from-repository-pkgbuild)
- [From repository (dev version)](#from-repository-dev-version)
- [Usage](#usage)
- [Runtime keybindings](#runtime-keybindings)
- [CLI arguments](#cli-arguments)
- [Default Project](#default-project)
- [Sources and Effects](#sources-and-effects)
- [Debug View](#debug-view)
- [NanoKontrol2 Controller mapping](#nanokontrol2-controller-mapping)
- [Making your own FORGE project](#making-your-own-forge-project)
- [`forge_project.cfg`](#forge_projectcfg)
- [Working with `frag0.glsl`](#working-with-frag0glsl)
- [Frequently Asked Questions](#frequently-asked-questions)
- [Why "steel"?](#why-steel)
- [How do I report a bug?](#how-do-i-report-a-bug)
- [Help I got low FPS on my video device](#help-i-got-low-fps-on-my-video-device)

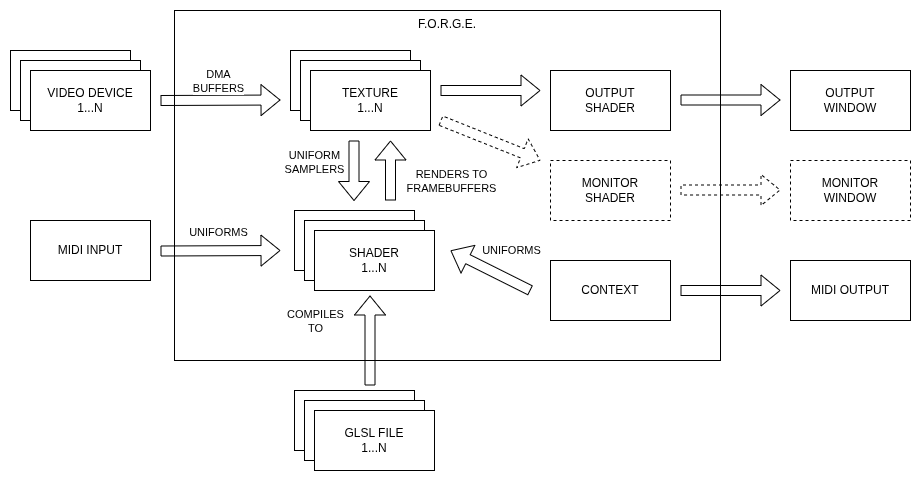

## What is FORGE ?
TODO
## Install
### Prerequisites
| library | apt | pacman |
| --------- | -------------- | --------------- |
| libglfw | libglfw3-dev | extra/glfw |
| libGL | libgl-dev | extra/libglvnd |
| libasound | libasound2-dev | extra/alsa-lib |
| libv4l2 | libv4l-dev | extra/v4l-utils |
### From release
See [Releases](https://github.com/klemek/forge-steel/releases)
```shell
tar xvzf forge-steel-x.y.z.tar.gz
cd forge-steel-x.y.z
./configure
make
make install
```
### From repository (PKGBUILD)
```shell
git clone --recursive https://github.com/klemek/forge-steel
cd forge
makepkg -si
```
### From repository (dev version)
```shell
git clone --recursive https://github.com/klemek/forge-steel
cd forge
aclocal
autoconf
automake --add-missing
./configure
make
make install
```
## Usage
### Runtime keybindings
When running, the following keybindings are available:
* Esc: Exit window
* R: Randomize shader state
* D: Demo mode On/Off
### CLI arguments
```txt
usage: forge [-h] [-v] [-hr] [-s=SCREEN] [-m=SCREEN] [-mo] [-p=PROJECT_PATH] [-c=CFG_FILE] [-sf=STATE_PATH] [-ls / -nls] [-ss / -nss] [-is=SIZE] [-v=FILE] [-vs=SIZE] [-t=TEMPO] [-d] [-w] [-tm] [-tf]
Fusion Of Real-time Generative Effects.
options:
-h, --help show this help message and exit
-v, --version print version
-hr, --hot-reload hot reload of shaders scripts
-s, --screen output screen number (default: primary)
-m, --monitor monitor screen number (default: none)
-mo, --monitor-only no output screen
-p, --project forge project directory (default: /usr/share/forge/default)
-c, --config config file name (default: forge_project.cfg)
-sf, --state-file saved state file (default: forge_saved_state.txt)
-ls, --load-state load saved state (default)
-nls, --no-load-state do not load saved state
-ss, --save-state save state (default)
-nss, --no-save-state do not save state
-is, --internal-size internal texture height (default: 720)
-v, --video-in path to video capture device (multiple allowed)
-vs, --video-size video capture desired height (default: internal texture height)
-t, --tempo base tempo (default: 60)
-d, --demo demonstration mode (assume --no-save-state and --no-load-state)
-w, --windowed not fullscreen
-tm, --trace-midi print midi code and values
-tf, --trace-fps print fps status of subsystems
```
## Default Project
> A.K.A Kleπek's shaders
### Sources and Effects
| P | # | SRC | _COL2_ | _COL3_ | _COL4_ | FX | _COL6_ | _COL7_ | _COL8_ |
| ----- | ----- | ----------------- | ----------------- | --------------- | ------------------ | ---------------- | --------------- | ------------- | -------------- |
| **1** | **0** | Feedback + Thru | _Hue_ | _Saturation_ | _Light_ | Thru | _Hue_ | _Saturation_ | \_Light |
| | **1** | Lines | _Thick. / Dezoom_ | _Rotation_ | _Distortion_ | Feedback + Shift | _Zoom / Dezoom_ | _X Shift_ | _Y Shift_ |
| | **2** | Dots | _Zoom_ | _Rotation_ | _Lens_ | Shift | _Zoom / Dezoom_ | _X Shift_ | _Y Shift_ |
| | **3** | Waves | _Spacing_ | _Thickness_ | _Vert. Scroll (R)_ | Colorize | _Black Color_ | _White Color_ | _Shift_ |
| | **4** | Noise | _Zoom_ | _Voronoi dist._ | _Details_ | Quantize | _Pixel Size_ | _Bit Depth_ | _Blur_ |
| **2** | **5** | Video In 1 + Thru | _Hue_ | _Saturation_ | _Light_ | Dithering | _Pixel Size_ | _Bit Depth_ | _Blur_ |
| | **6** | CP437 | _Zoom_ | _Charset_ | _Char. Delta_ | TV | _Lens_ | _Horz. Noise_ | _Dezoom_ |
| | **7** | Sentences | _Zoom_ | _Sentence_ | _Vertical repeat_ | Kaleidoscope | _Axes_ | _Rotation_ | _Horz. Scroll_ |
| | **8** | | | | | CP437 | _Zoom_ | _Charset_ | _Char. Delta_ |
| | **9** | | | | | Lens | _Lens limit_ | _Lens power_ | _Pre Zoom_ |
| **3** | **A** | Video In 2 + Thru | _Hue_ | _Saturation_ | _Light_ | | | | |
| | **B** | | | | | | | | |
| | **C** | | | | | | | | |
| | **D** | | | | | | | | |
| | **E** | Debug | --- | --- | --- | | | | |
TODO update

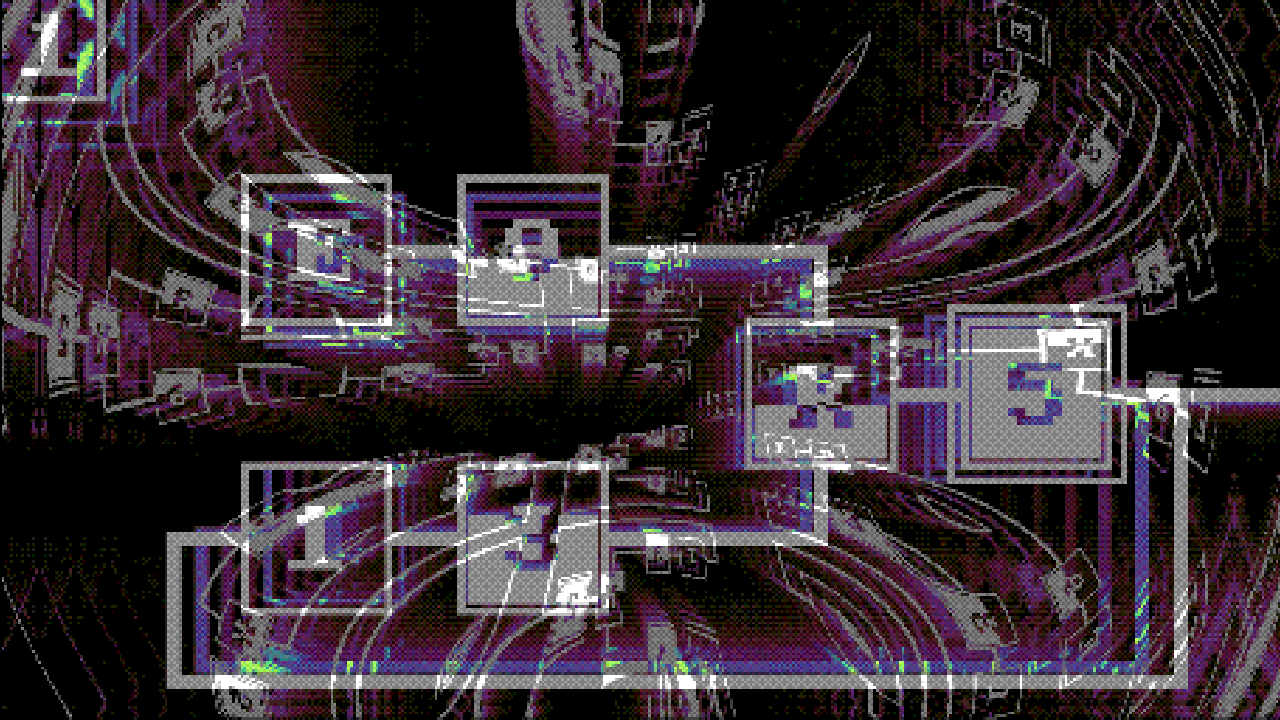

### Debug View
### NanoKontrol2 Controller mapping
> In blue is a sample "stage" as most sources/effects use a combination of 4 stages (see table above)
> ⚠️ you'll need to change your NanoKontrol2 settings to remove the "toggle" behavior of the buttons and use "external" led control
## Making your own FORGE project
TODO
### `forge_project.cfg`
TODO
### Working with `frag0.glsl`
TODO
## Frequently Asked Questions
### Why "steel"?
FORGE is a concept which is intended to be derived onto other forms (like Raspberry PI). In order to differentiate between them each would be name after a different alloy.
FORGE (steel) describe the linux version.
### How do I report a bug?
TODO
### Help I got low FPS on my video device
TODO
