F.O.R.G.E. (Steel)

Fusion Of Real Time Generative Effects

Steel version (PC executable)

TODO cool image and youtube link

Table of Contents

• What is FORGE ?
• Install
  • Prerequisites
  • From release
  • From repository (PKGBUILD)
  • From repository (dev version)
• CLI usage
• Default Shaders and Config
  • Sources and Effects
  • Debug View
  • NanoKontrol2 Controller mapping
• Making your own FORGE config
  • Working with frag0.glsl
• Frequently Asked Questions
  • Why "steel"?
  • How do I report a bug?
  • Help I got low FPS on my video device

What is FORGE ?

TODO

Install

Prerequisites

library	apt	pacman
libglfw	libglfw3-dev	extra/glfw
libGL	libgl-dev	extra/libglvnd
libasound	libasound2-dev	extra/alsa-lib
libv4l2	libv4l-dev	extra/v4l-utils

From release

See Releases

tar xvzf forge-steel-x.y.z.tar.gz
cd forge-steel-x.y.z
./configure
make
make install

From repository (PKGBUILD)

git clone --recursive https://github.com/klemek/forge-steel
cd forge
makepkg -si

From repository (dev version)

git clone --recursive https://github.com/klemek/forge-steel
cd forge
aclocal
autoconf
automake --add-missing
./configure
make
make install

CLI usage

usage: forge [-h] [-v] [-hr] [-s=SCREEN] [-m=SCREEN] [-mo] [-f=DIR_PATH] [-c=CFG_PATH] [-sf=STATE_PATH] [-ls / -nls] [-ss / -nss] [-is=SIZE] [-v=FILE] [-vs=SIZE] [-t=TEMPO] [--demo] [-w]

Fusion Of Real-time Generative Effects.

options:
  -h, --help                show this help message and exit
  -v, --version             print version
  -hr, --hot-reload         hot reload of shaders scripts
  -s, --screen              output screen number (default: primary)
  -m, --monitor             monitor screen number (default: none)
  -mo, --monitor-only       no output screen
  -f, --frag                fragment shaders directory (default: /usr/share/forge/shaders)
  -c, --config              fragment shaders config file (default: /usr/share/forge/default.cfg)
  -sf, --state-file         saved state file (default: forge_saved_state.txt)
  -ls, --load-state         load saved state (default)
  -nls, --no-load-state     do not load saved state
  -ss, --save-state         save state (default)
  -nss, --no-save-state     do not save state
  -is, --internal-size      internal texture height (default: 720)
  -v, --video-in            path to video capture device (multiple allowed)
  -vs, --video-size         video capture desired height (default: internal texture height)
  -t, --tempo               base tempo (default: 60)
  --demo                    demonstration mode (assume --no-save-state and --no-load-state)
  -w, --windowed            not fullscreen
  --trace-midi              print midi code and values
  --trace-fps               print fps status of subsystems

Default Shaders and Config

A.K.A Kleπek's shaders

Sources and Effects

P	#	SRC	COL2	COL3	COL4	FX	COL6	COL7	COL8
1	0	Feedback + Thru	Hue	Saturation	Light	Thru	Hue	Saturation	_Light
	1	Lines	Thick. / Dezoom	Rotation	Distortion	Feedback + Shift	Zoom / Dezoom	X Shift	Y Shift
	2	Dots	Zoom	Rotation	Lens	Shift	Zoom / Dezoom	X Shift	Y Shift
	3	Waves	Spacing	Thickness	Vert. Scroll (R)	Colorize	Black Color	White Color	Shift
	4	Noise	Zoom	Voronoi dist.	Details	Quantize	Pixel Size	Bit Depth	Blur
2	5	Video In 1 + Thru	Hue	Saturation	Light	Dithering	Pixel Size	Bit Depth	Blur
	6	CP437	Zoom	Charset	Char. Delta	TV	Lens	Horz. Noise	Dezoom
	7	Sentences	Zoom	Sentence	Vertical repeat	Kaleidoscope	Axes	Rotation	Horz. Scroll
	8					CP437	Zoom	Charset	Char. Delta
	9					Lens	Lens limit	Lens power	Pre Zoom
3	A	Video In 2 + Thru	Hue	Saturation	Light
	B
	C
	D
	E	Debug	---	---	---

TODO update

Debug View

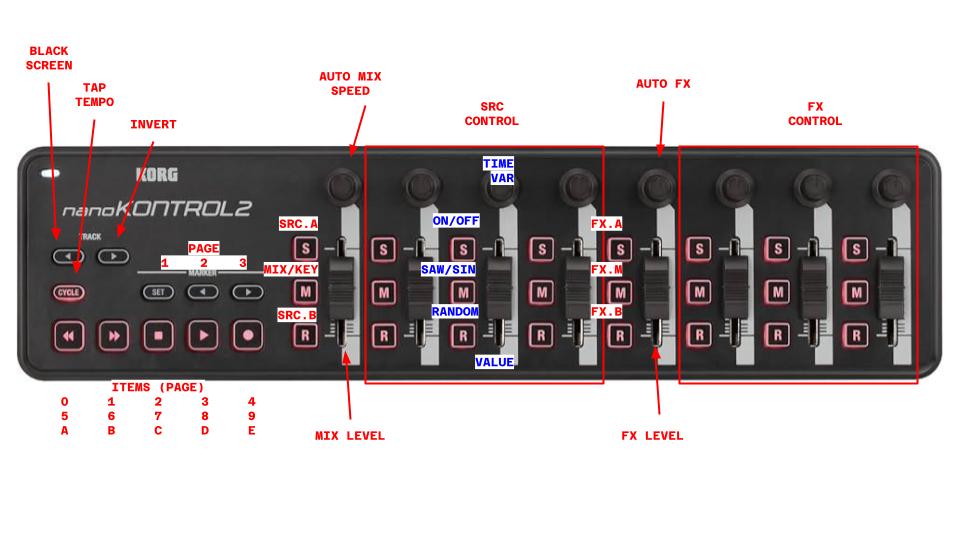

NanoKontrol2 Controller mapping

In blue is a sample "stage" as most sources/effects use a combination of 4 stages (see table above)

⚠️ you'll need to change your NanoKontrol2 settings to remove the "toggle" behavior of the buttons and use "external" led control

Making your own FORGE config

TODO

Working with frag0.glsl

TODO

Frequently Asked Questions

Why "steel"?

FORGE is a concept which is intended to be derived onto other forms (like Raspberry PI). In order to differentiate between them each would be name after a different alloy.

FORGE (steel) describe the linux version.

How do I report a bug?

TODO

Help I got low FPS on my video device

TODO
