F.O.R.G.E. (Steel)

Fusion Of Real-time Generative Effects

Steel version (PC executable)

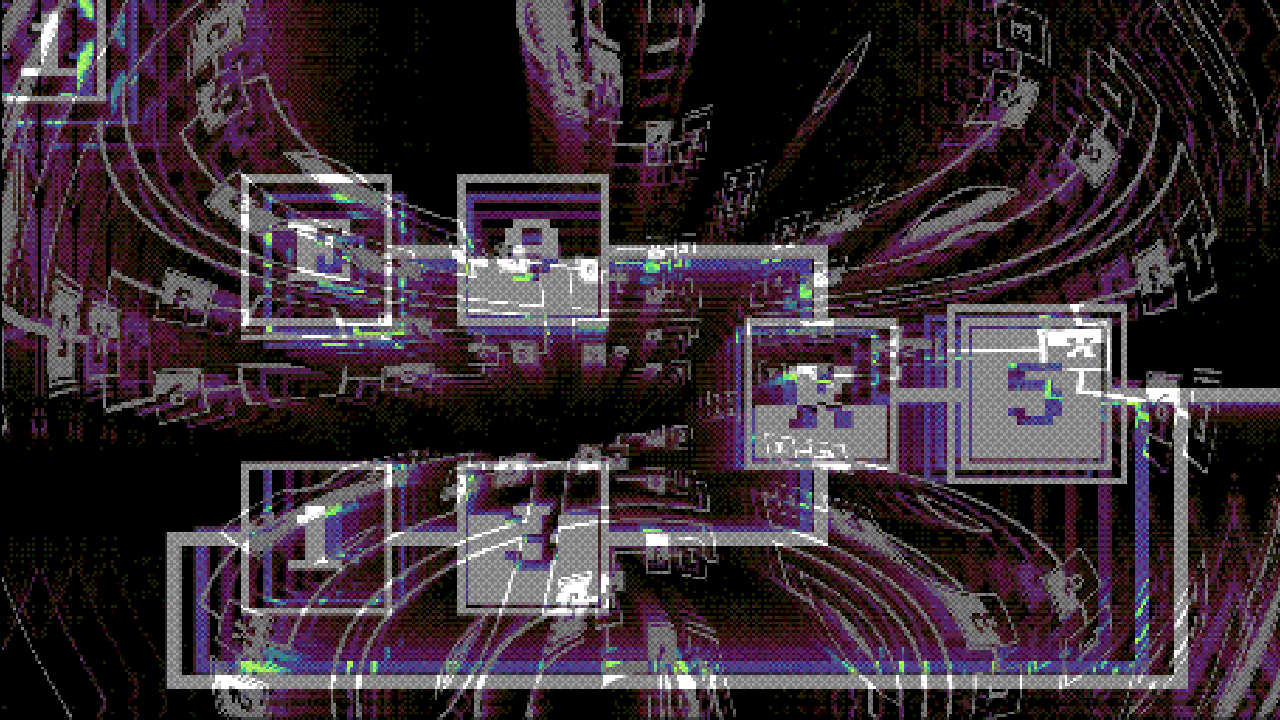

Discover an engine where user-defined fragment shaders collide to produce stunning visuals.

See Demo #1 - 1H and Demo #2 - Monitor View on YouTube b

Table of Contents

• What is FORGE ?
• Install
  • Prerequisites
  • From release
  • From repository (PKGBUILD)
  • From repository (dev version)
• Usage
  • Runtime keybindings
  • CLI arguments
• Default Project
  • Sources and Effects
  • Debug View
  • NanoKontrol2 Controller mapping
• Making your own FORGE project
  • forge_project.cfg
  • Writing your fragment shaders
  • Working with #include
• Frequently Asked Questions
  • Why "steel"?
  • How do I report a bug?
  • Help I got low FPS on my video device

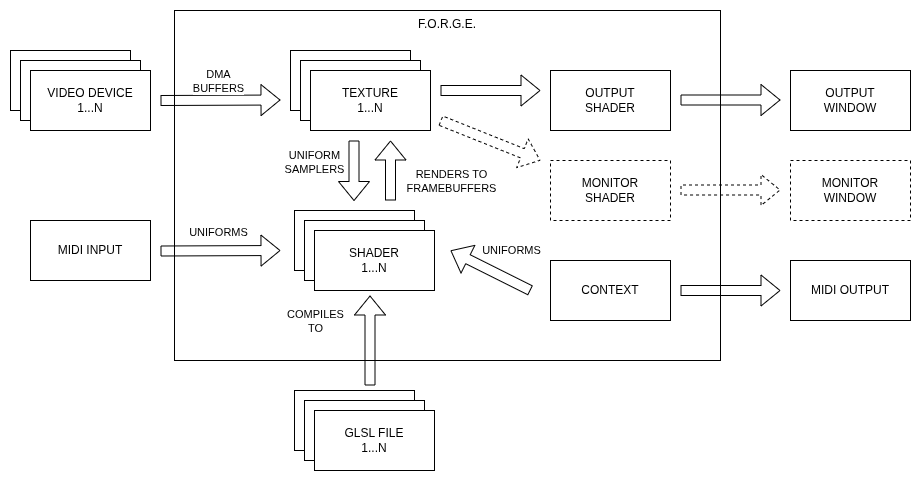

What is FORGE ?

TODO

Install

Prerequisites

library	apt	pacman
libglfw	libglfw3-dev	extra/glfw
libGL	libgl-dev	extra/libglvnd
libasound	libasound2-dev	extra/alsa-lib
libv4l2	libv4l-dev	extra/v4l-utils

From release

See Releases

tar xvzf forge-steel-x.y.z.tar.gz
cd forge-steel-x.y.z
./configure
make
make install

From repository (PKGBUILD)

git clone --recursive https://github.com/klemek/forge-steel
cd forge
makepkg -si

From repository (dev version)

git clone --recursive https://github.com/klemek/forge-steel
cd forge
aclocal
autoconf
automake --add-missing
./configure
make
make install

Usage

Runtime keybindings

When running, the following keybindings are available:

• Esc: Exit window
• R: Randomize shader state
• D: Demo mode On/Off
• A: Auto Random mode On/Off

CLI arguments

usage: forge [-h] [-v] [-p=PROJECT_PATH] [-c=CFG_FILE] [-hr] [-s=SCREEN] [-m=SCREEN] [-mo] [-w] [-t=TEMPO] [-d] [-ar / -nar] [-v=FILE] [-vs=SIZE] [-is=SIZE] [-sf=STATE_PATH] [-ls / -nls] [-ss / -nss] [-tm] [-tf]

Fusion Of Real-time Generative Effects.

options:
  -h, --help                show this help message and exit
  -v, --version             print version
  -p, --project             forge project directory (default: /usr/share/forge/default)
  -c, --config              config file name (default: forge_project.cfg)
  -hr, --hot-reload         hot reload of shaders scripts
  -s, --screen              output screen number (default: primary)
  -m, --monitor             monitor screen number (default: none)
  -mo, --monitor-only       no output screen
  -w, --windowed            not fullscreen
  -t, --tempo               base tempo (default: 60)
  -d, --demo                demonstration mode (assume --no-save-state, --no-load-state, --auto-random)
  -ar, --auto-random        randomize state every 4 beats
  -nar, --no-auto-random    do not randomize state (default)
  -v, --video-in            path to video capture device (multiple allowed)
  -vs, --video-size         video capture desired height (default: internal texture height)
  -is, --internal-size      internal texture height (default: 720)
  -sf, --state-file         saved state file (default: forge_saved_state.txt)
  -ls, --load-state         load saved state (default)
  -nls, --no-load-state     do not load saved state
  -ss, --save-state         save state (default)
  -nss, --no-save-state     do not save state
  -tm, --trace-midi         print midi code and values
  -tf, --trace-fps          print fps status of subsystems

Default Project

A.K.A Kleπek's shaders

Sources and Effects

P	#	SRC	COL2	COL3	COL4	FX	COL6	COL7	COL8
1	0	Feedback + Thru	Hue	Saturation	Light	Thru	Hue	Saturation	_Light
	1	Lines	Thick. / Dezoom	Rotation	Distortion	Feedback + Shift	Zoom / Dezoom	X Shift	Y Shift
	2	Dots	Zoom	Rotation	Lens	Shift	Zoom / Dezoom	X Shift	Y Shift
	3	Waves	Spacing	Thickness	Vert. Scroll (R)	Colorize	Black Color	White Color	Shift
	4	Noise	Zoom	Voronoi dist.	Details	Quantize	Pixel Size	Bit Depth	Blur
2	5	Video In 1 + Thru	Hue	Saturation	Light	Dithering	Pixel Size	Bit Depth	Blur
	6	CP437	Zoom	Charset	Char. Delta	TV	Lens	Horz. Noise	Dezoom
	7	Sentences	Zoom	Sentence	Vertical repeat	Kaleidoscope	Axes	Rotation	Horz. Scroll
	8	Sentences repeat	X Shift	Sentence	Vertical repeat	CP437	Zoom	Charset	Char. Delta
	9	Isometric grid	Zoom	Scroll	Elevation	Lens	Lens limit	Lens power	Pre Zoom
3	A	Video In 2 + Thru	Hue	Saturation	Light	Spill	Bottom limit	Top Limit	Rotation
	B	Scales	Zoom	Shape	Ripples	Game Of Life	Pixel Size	Ruleset/Threshold	Feedback
	C	Credenza	Zoom	Shape	Ripples	Sobel Filter	Horz. filter	Vert. filter	Filter Size
	D	Cursor	Size	Pos X	Pos Y	(same as 0)
	E	(Random source)	---	---	---	(Random effect)	---	---	---

TODO update

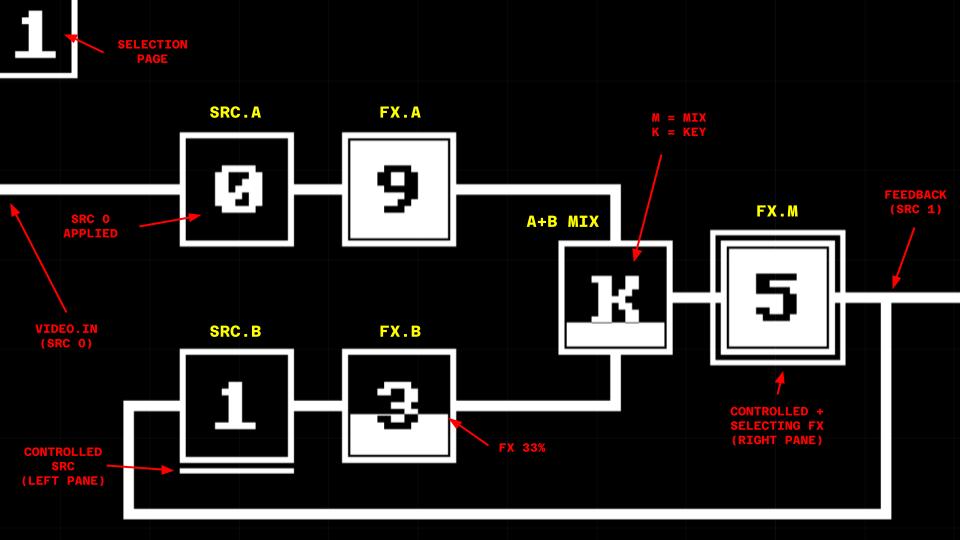

Debug View

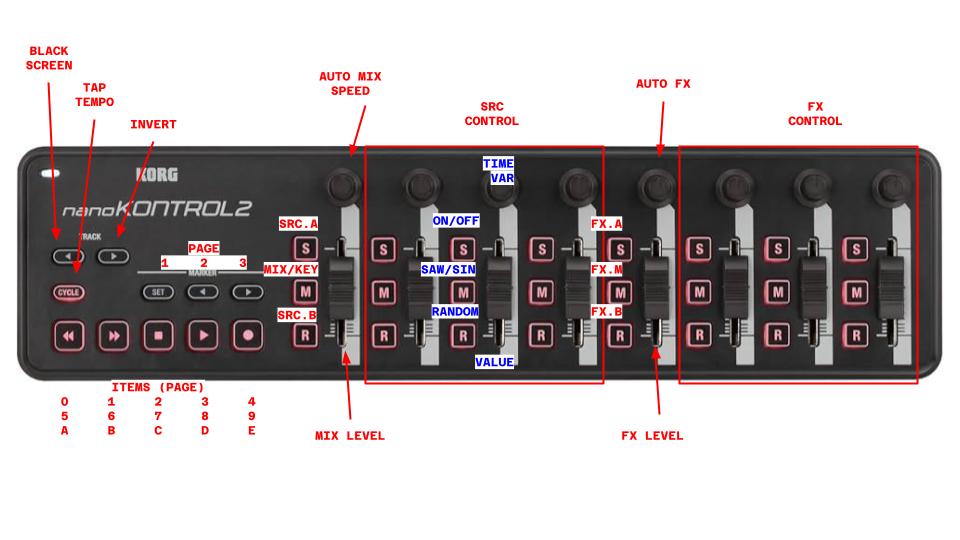

NanoKontrol2 Controller mapping

In blue is a sample "stage" as most sources/effects use a combination of 4 stages (see table above)

⚠️ you'll need to change your NanoKontrol2 settings to remove the "toggle" behavior of the buttons and use "external" led control

Making your own FORGE project

TODO

forge_project.cfg

TODO

Writing your fragment shaders

TODO

Working with #include

TODO

Frequently Asked Questions

Why "steel"?

FORGE is a concept which is intended to be derived onto other forms (like Raspberry PI). In order to differentiate between them each would be name after a different alloy.

FORGE (steel) describe the linux version.

How do I report a bug?

TODO

Help I got low FPS on my video device

TODO
